IVF Workstation Microscopes

From

Offering high magnification and clarity

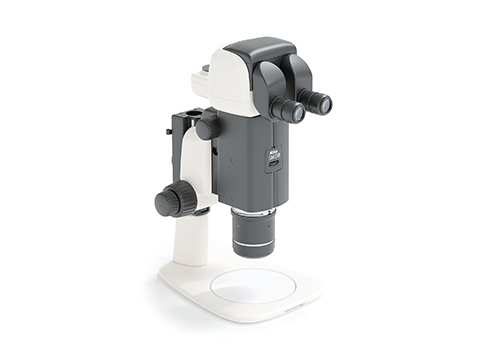

Stereozoom microscopes offer high magnification and clarity, as well as the necessary space for handling samples.

The models offered have optimal zoom ratios and contrast to observe oocytes and embryos.
CooperSurgical Workstations are microscope-ready, including a heated glass stage and LED light source.

Working distance represents the distance between the front of the objective lens and the surface of the dish when the specimen is completely in focus. A higher working distance allows the ease of manipulating samples. Our tailored microscope pairings were chosen in collaboration with our partners as to offer ideal working distance conditions.

The microscope field of view (FOV) is the maximum area visible when looking through the microscope.

Availability

This product is available for sale in selected countries.

Olympus Configuration

	Olympus SZX7	Olympus SZX10
Zoom Range	0.8x – 5.6x (Achromat)	0.63x – 6.3x (Achromat)
Zoom Ratio	1:7	1:10
Supplied magnification range	8x – 56x	6.3 – 63x
Field of view	Ø27.5-Ø3.9 mm	Ø34.9-Ø3.5 mm
BI/TRI	Binocular tube	Tube 30°
Working distance	90mm	90mm

Nikon Configuration

	Nikon SMZ1270	Nikon SMZ18
Zoom Range	0.63x – 8x (Plan Apochromat)	0.75 – 13.5x (Plan Apochromat)
Zoom Ratio	1:12.7	1:18
Supplied magnification range	6.3 – 80x	7.5 – 135x
Field of view	Ø34.9-Ø2.8 mm	Ø59
BI/TRI	Trinocular Tilting Tube	Trinocular Tilting Tube
Working distance	70mm	60mm
